727-136 | WAGO

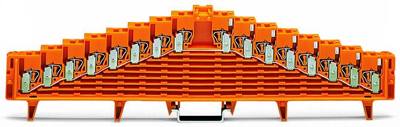

8-level potential terminal, spring-clamp connection, 0.08-1.5 mm², 1 pole, 18 A, 4 kV, orange, 727-136
Unit Price (€ / pc.)
24.8710 € *
Available: 15 pcs.
Leadtime: 3 Weeks **
Total Price:
24.87 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8710 €
10 pcs.
23.1217 €
25 pcs.
21.2772 €
50 pcs.
19.3613 €
*incl. VAT plus shipping costs
**Subject to prior sale
8-level same potential terminal block, 727-136, Wago
8-level potential terminal without snap-in hook without imprint all terminals are short-circuited among each other according to EN 60715 orange
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 32 | |
| Version | 8-level potential terminal | |
| AWG cross-section | AWG 28 to 16 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 7.62 mm | |
| Colour | orange | |
| Height | 226 mm | |
| Length | 58.5 mm | |
| Cable cross-section | 0.08-1.5 mm² | |
| Rated current | 18 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
