727-224/022-000 | WAGO

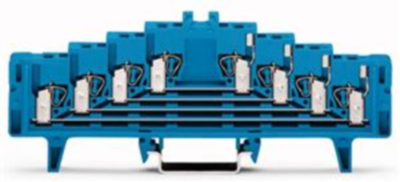

4-level shunting terminal, spring-clamp connection, 0.08-1.5 mm², 4 pole, 12 A, 4 kV, blue, 727-224/022-000
Unit Price (€ / pc.)
12.1142 € *
Available: 44 pcs.
Leadtime: 3 Weeks **
4-Level terminal block, 727-224/022-000, Wago
4-tier shunting terminal without snap-in hook imprint: a-b-c-d--d-c-b-a 4 x pair-wise connection of the clamping points on the same level for applications Ex i suitable according to EN 60715 blue
Technical specifications
| Version | 4-Etagen-Rangierklemme | |
| Number of terminals | 16 | |
| Pin number | 4-polig | |
| Cable cross-section | 0,08-1,5 mm² | |
| AWG cross-section | AWG 28 bis 16 | |
| Rated surge voltage | 4 kV | |
| Rated current | 12 A | |
| Rated Voltage | 250 V | |
| Degree of soiling | 3 | |
| Length | 44.5 mm | |
| Width | 7.62 mm | |
| Height | 126 mm | |
| Connection | Federklemmanschluss | |
| Colour | blau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
