769-191 | WAGO

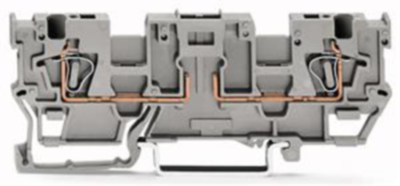

2-wire base terminal, spring-clamp connection, 0.08-4.0 mm², 2 pole, 16 A, 6 kV, gray, 769-191
Unit Price (€ / pc.)
2.2610 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0706 €
50 pcs.
1.8921 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor carrier terminal block, 769-191, Wago
1-wire/1-wire basic terminal block with 2-fold cross-bridging according to EN 60715 2-pole gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire base terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 87.5 mm | |
| Length | 28.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 16 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
