769-208/281-410 | WAGO
Diode terminal, spring-clamp connection, 0.08-8.0 mm², 1 pole, 500 mA, gray, 769-208/281-410
Unit Price (€ / pc.)
4.76 € *
Available: 0 pcs.
Leadtime: On Request **

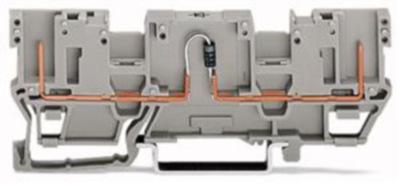

2-Pin component carrier block, 769-208/281-410, Wago

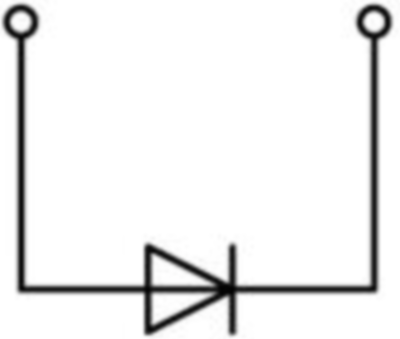

2-pin diode base terminal block anode left with 2-fold cross-bridge according to EN 60715 gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | Diode terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 250 V | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 87.5 mm | |
| Length | 28.5 mm | |
| Cable cross-section | 0.08-8.0 mm² | |
| Rated current | 500 mA | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
