769-219/281-413 | WAGO
1 conductor/1 pin component base terminal with red LED, spring-clamp connection, 0.08-4.0 mm², 1 pole, 0.025 A, gray, 769-219/281-413
Unit Price (€ / pc.)
4.2959 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

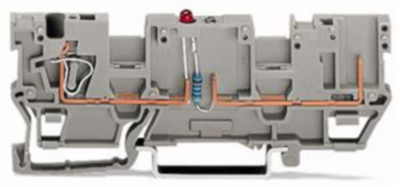

Component carrier terminal block, 769-219/281-413, WAGO

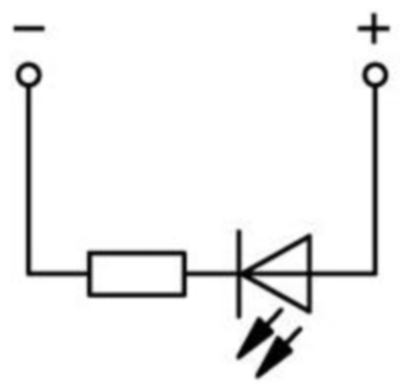

1-conductor/1-pin component carrier terminal block, with 2 jumper positions, LED (red), 24 VDC, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², CAGE CLAMP, 4,00 mm², gray.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | 1-Leiter/1-Pin-Bauelement-Basisklemme mit LED rot | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 24 V | |
| Breite | 5 mm | |
| Farbe | grau | |
| Höhe | 87.5 mm | |
| Länge | 28.5 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 0.025 A | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
