769-238/281-410 | WAGO
1-wire/1-pin diode base terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 500 mA, gray, 769-238/281-410
Unit Price (€ / pc.)
5.1765 € *
Available: 0 pcs.
Leadtime: On Request **

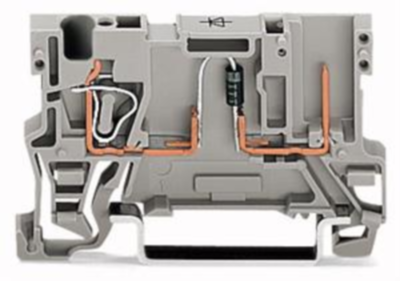

Component carrier terminal block, 769-238/281-410, WAGO

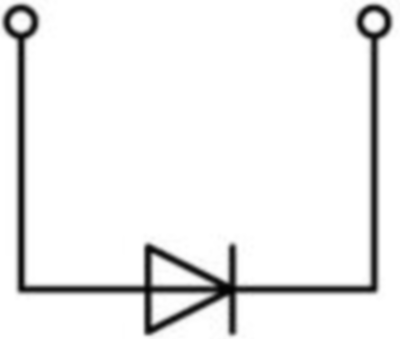

1-conductor/1-pin component carrier terminal block, with diode 1N4007, anode, left side, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², CAGE CLAMP, 4,00 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 1 | |
| Version | 1-wire/1-pin diode base terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 250 V | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 52.5 mm | |
| Length | 28.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 500 mA | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
