780-637 | WAGO
3-wire protective earth terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, yellow/green, 780-637
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Leadtime: On Request **

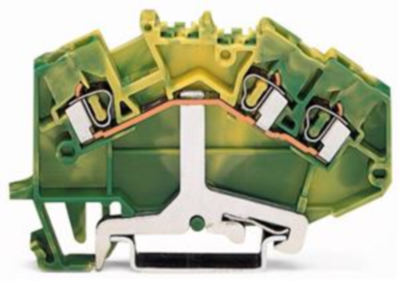

Ground terminal block, 780-637, WAGO
3-conductor ground terminal block, 2.5 mm², center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 2,50 mm², green-yellow.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 3 | |
| Version | 3-wire protective earth terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Width | 5 mm | |
| Colour | yellow/green | |
| Height | 77 mm | |
| Length | 43.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
