780-993 | WAGO

3-wire feed-through terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 23 A, light gray, 780-993

Order No.: 45P0588
EAN: 4044918544696
MPN:
780-993
Series: 780
WAGO

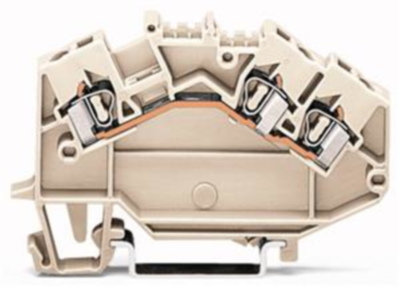

780-993 WAGO Series Terminals Image 1
780-993 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7374 €
50 pcs.
1.5827 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
**Subject to prior sale

Through terminal block, 780-993, Wago

3-wire through terminal block Ex e II suitable for applications Ex e II light gray

Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire feed-through terminal
AWG cross-section AWG 28 to 12
Rated Voltage 750 V
Width 5 mm
Colour light gray
Height 77 mm
Length 43.5 mm
Cable cross-section 0.08-2.5 mm²
Rated current 23 A
Pin number 1 pole
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
