781-631 | WAGO
3-wire feed-through terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 32 A, 8 kV, gray, 781-631
Unit Price (€ / pc.)
2.2967 € *
Available: 0 pcs.
Leadtime: On Request **

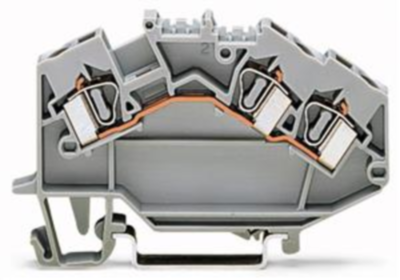

Through terminal block, 781-631, WAGO
3-conductor through terminal block, 4 mm², center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 4,00 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 3 | |
| Version | 3-wire feed-through terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 6 mm | |
| Colour | gray | |
| Height | 77 mm | |
| Length | 43.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 32 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
