781-651 | WAGO

3-wire feed-through terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 32 A, 8 kV, blue, 781-651

Order No.: 45P0604
EAN: 4044918501262
MPN:
781-651
Series: 781
WAGO

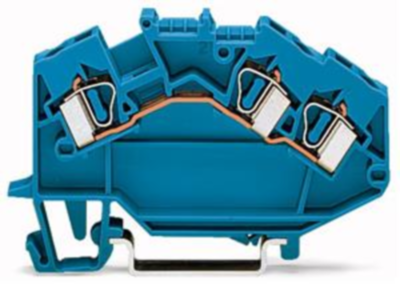

781-651 WAGO Series Terminals Image 1
781-651 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.3562 €

Through terminal block, 781-651, Wago

3-conductor feed-through terminal suitable for Ex i applications blue

Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire feed-through terminal
AWG cross-section AWG 28 to 12
Rated Voltage 1000 V
Rated surge voltage 8 kV
Width 6 mm
Colour blue
Height 77 mm
Length 43.5 mm
Cable cross-section 0.08-4.0 mm²
Rated current 32 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
