783-601 | WAGO

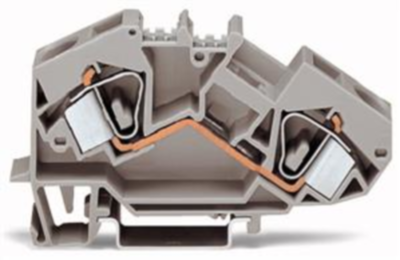

2-wire feed-through terminal, spring-clamp connection, 0.2-16 mm², 1 pole, 76 A, 8 kV, gray, 783-601
Unit Price (€ / pc.)
4.7243 € *
Available: 0 pcs.
Leadtime: On Request **
2-Conductor through terminal block, 783-601, Wago
2-conductor feed-through terminal block; 16 mm²; center labeling; for mounting rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 16.00 mm²; gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 24 to 6 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 12 mm | |
| Colour | gray | |
| Height | 88.5 mm | |
| Length | 43.5 mm | |
| Cable cross-section | 0.2-16 mm² | |
| Rated current | 76 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
