826-161/000-016 | WAGO
Single terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 32 A, 4 kV, yellow/green, 826-161/000-016
Unit Price (€ / pc.)
4.3673 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Feed-through terminal block, 826-161/000-016, WAGO
Feed-through terminal block, Conductor/conductor connection, Plate thickness: 1 - 4 mm, 4 mm², Pin spacing 7 mm, 1-pole, CAGE CLAMP, 4,00 mm², green-yellow.
Features
- Feed-through terminal blocks with screwdriver-actuated CAGE CLAMP on both sides
- Easy, tool-free installation
- Direct ground contact with enclosure/panel
- Test ports available on both sides

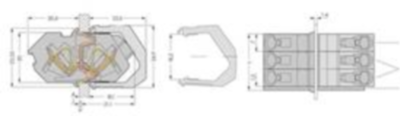

Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Einzelklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 320 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 7 mm | |
| Farbe | gelb/grün | |
| Höhe | 23.55 mm | |
| Länge | 42.5 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 2 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
