859-720 | WAGO
Optocoupler terminal, cage clamp, 0.08-2.5 mm², 6 A, gray, 859-720
Unit Price (€ / pc.)
39.4842 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
39.48 € *
Price list
Quantity
Price per unit*
1 pcs.
39.4842 €
5 pcs.
38.2942 €
10 pcs.
36.7710 €
25 pcs.
34.5576 €
*incl. VAT plus shipping costs
**Subject to prior sale

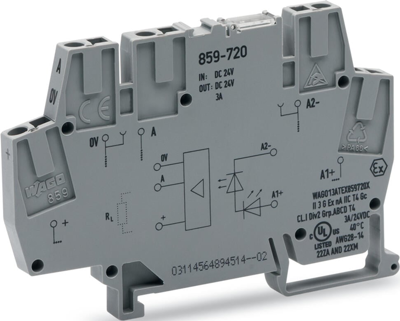

Optocoupler module, 859-720, WAGO
Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 0-24 VDC, Limiting continuous current: 6 A, 3-wire connection/low-side switching, Module width: 6 mm, gray.
Technical specifications
| Anschluss | Käfigklemme | |
| Ausführung | Optokopplermodul | |
| AWG-Leiterquerschnitt | AWG 28 bis 14 | |
| Bemessungsspannung | 300 V | |
| Breite | 6 mm | |
| Farbe | grau | |

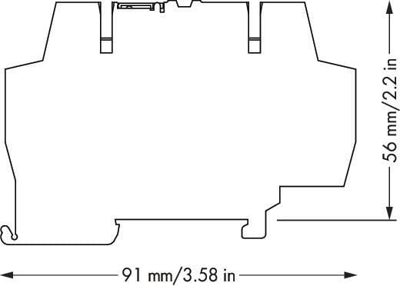

| Höhe | 91 mm | |
| Länge | 56 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 6 A | |
| Verschmutzungsgrad | 2 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365005 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
