859-772 | WAGO
Optocoupler terminal, cage clamp, 0.08-2.5 mm², 0.5 A, gray, 859-772
Unit Price (€ / pc.)
48.8257 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
48.83 € *
Price list
Quantity
Price per unit*
1 pcs.
48.8257 €
5 pcs.
47.3620 €
10 pcs.
45.4699 €
25 pcs.
42.7329 €
*incl. VAT plus shipping costs
**Subject to prior sale

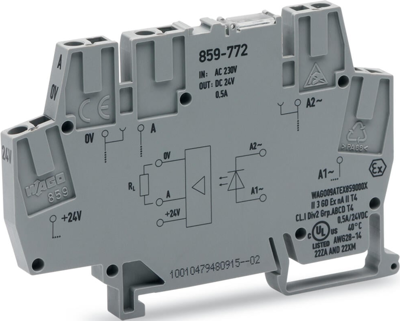

Optocoupler module, 859-772, WAGO
Optocoupler module, Nominal input voltage: 230 VAC, Output voltage range: 20-30 VDC, Limiting continuous current: 0.5 A, 3-wire connection/high-side switching, Red status indicator, Module width: 6 mm, gray.

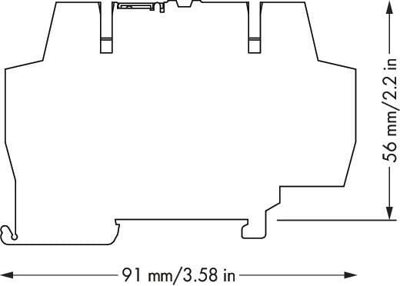

Technical specifications
| Anschluss | Käfigklemme | |
| Ausführung | Optokopplermodul | |
| AWG-Leiterquerschnitt | AWG 28 bis 14 | |
| Bemessungsspannung | 300 V | |
| Breite | 6 mm | |
| Farbe | grau | |
| Höhe | 91 mm | |
| Länge | 56 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 0.5 A | |
| Verschmutzungsgrad | 2 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365005 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
