859-791 | WAGO

Optocoupler terminal block, Cage clamp connection

Order No.: 45P2381
EAN: 4055143606240
MPN:
859-791
Series: 859
WAGO

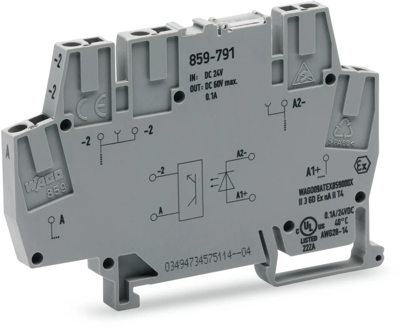

859-791 WAGO Series Terminals Image 1
859-791 WAGO Series Terminals Image 2
859-791 WAGO Series Terminals Image 3
Image may differ
Print
Key Specification:
Ausführung Optokopplerklemme
Leiterquerschnitt 0,08-2,5 mm²
AWG-Leiterquerschnitt AWG 28 bis 14
Show 19 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
20.23 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Add to Cart
Total Price:
20.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
20.23 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Optocoupler module, 859-791, WAGO

Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 20 - 60 VDC, Limiting continuous current: 0.1 A, 2-wire connection, Railway, Module width: 6 mm, gray.
Technical specifications
Anschluss Federklemmanschluss
Ausführung Optokopplerklemme
AWG-Leiterquerschnitt AWG 28 bis 14
Bemessungsspannung 300 V
Breite 6 mm
Farbe grau
Höhe 56 mm
Länge 91 mm
Leiterquerschnitt 0,08-2,5 mm²
Verschmutzungsgrad 2
Show similar products 0
Logistics
Ursprungsland DE
Zolltarifnummer 85365005
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Tetrabrombisphenol A (TBBPA), Blei
