870-104 | WAGO
1-wire/1-pin double level terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 16 A, 6 kV, blue, 870-104
Unit Price (€ / pc.)
2.3800 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1896 €
50 pcs.
1.9873 €
100 pcs.
1.7850 €
*incl. VAT plus shipping costs
**Subject to prior sale

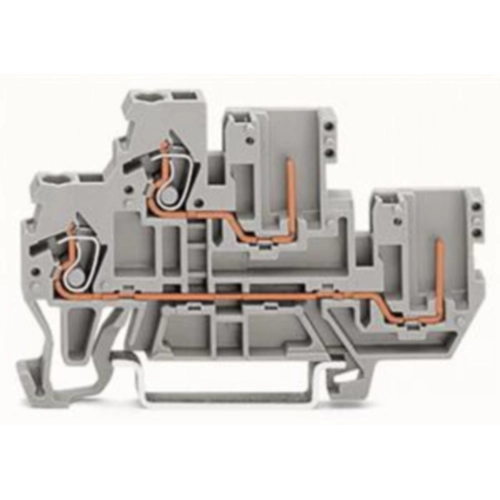

Double deck receptacle terminal block, 870-104, WAGO
1-conductor/1-pin double deck receptacle terminal block, Through/through terminal block, 2.5 mm², N/N, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 1-wire/1-pin double level terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | blue | |
| Height | 70 mm | |
| Length | 40 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 16 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
