870-1138 | WAGO
4-wire/2-pin double level terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 16 A, 6 kV, gray, 870-1138
Unit Price (€ / pc.)
4.4982 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.50 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4982 €
10 pcs.
4.1412 €
50 pcs.
3.7604 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale

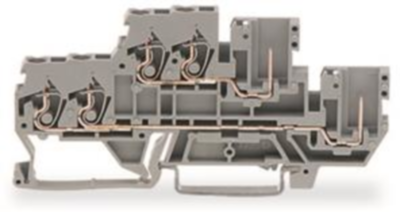

Double-deck carrier terminal block, 870-1138, WAGO
4-conductor/2-pin double-deck carrier terminal block, 4-conductor/2-pin through terminal block, 2.5 mm², L/L, internal commoning, conductor entry with violet marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Ausführung | 4-Leiter/2-Pin-Doppelstockklemme | |
| Anzahl der Klemmstellen | 6 | |
| Polzahl | 1-polig | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsstoßspannung | 6 kV | |
| Nennstrom | 16 A | |
| Bemessungsspannung | 500 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 39.8 mm | |
| Breite | 5 mm | |
| Höhe | 91 mm | |
| Anschluss | Federklemmanschluss | |
| Farbe | grau |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
