870-536 | WAGO

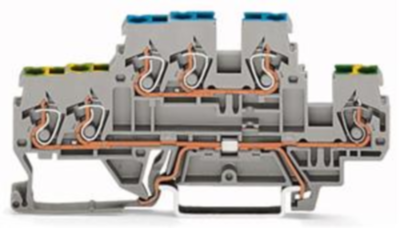

3-wire double level terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 24 A, 6 kV, gray, 870-536
Unit Price (€ / pc.)
3.3796 € *
Available: 0 pcs.
Leadtime: On Request **
3-Conductor double level terminal block, 870-536, Wago

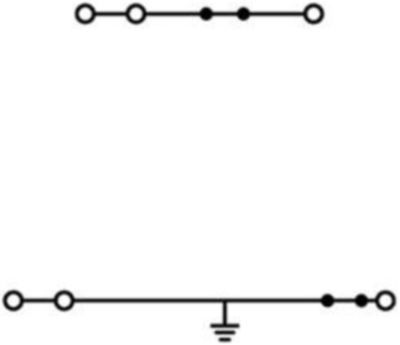

3-conductor double level terminal Protective conductor/through terminal PE/L Housing color gray-gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 6 | |
| Version | 3-wire double level terminal block | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 91 mm | |
| Length | 40 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
