870-537 | WAGO
3-wire double level terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 24 A, 6 kV, yellow/green, 870-537
Unit Price (€ / pc.)
8.0206 € *
Available: 18 pcs.
Leadtime: 1 Week **
Total Price:
8.02 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0206 €
10 pcs.
7.3780 €
50 pcs.
6.7116 €
100 pcs.
6.0452 €
*incl. VAT plus shipping costs
**Subject to prior sale

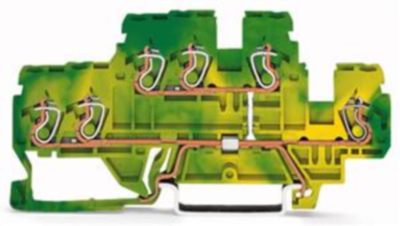

3-Conductor double level terminal block, 870-537, Wago

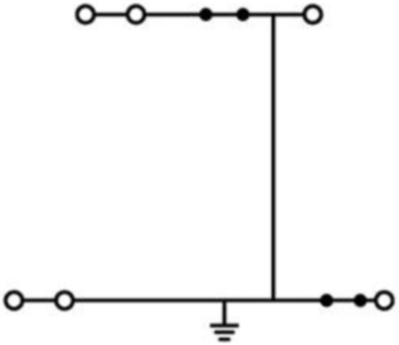

3-conductor double level terminal 6-conductor protective earth terminal PE Housing color green-yellow internally bridged green-yellow
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 6 | |
| Version | 3-wire double level terminal block | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | yellow/green | |
| Height | 91 mm | |
| Length | 40 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
