870-551 | WAGO
Feed-through/feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 3 pole, 24 A, 6 kV, gray, 870-551
Unit Price (€ / pc.)
4.0817 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.08 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0817 €
10 pcs.
3.7604 €
50 pcs.
3.4153 €
100 pcs.
3.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale

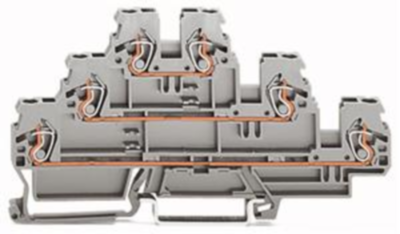

Triple-deck terminal block, 870-551, WAGO
Triple-deck terminal block, Through/through/through terminal block, L/L/L, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², gray.
Technical specifications
Ausführung | Durchgangs-/Durchgangs-/Durchgangsklemme | |
Anzahl der Klemmstellen | 6 | |
Polzahl | 3-polig | |
Leiterquerschnitt | 0,08-2,5 mm² | |
AWG-Leiterquerschnitt | AWG 28 bis 12 | |
Bemessungsstoßspannung | 6 kV | |
Nennstrom | 24 A | |
Bemessungsspannung | 500 V | |
Verschmutzungsgrad | 3 | |
Länge | 52.5 mm | |
Breite | 5 mm | |
Höhe | 106 mm | |
Anschluss | Federklemmanschluss | |
Farbe | grau |
Download
Logistics
Ursprungsland | DE |
Zolltarifnummer | 85369010 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
