870-833 | WAGO

4-wire feed-through terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, red, 870-833

Order No.: 45P2741
EAN: 4045454094645
MPN:
870-833
Series: 870

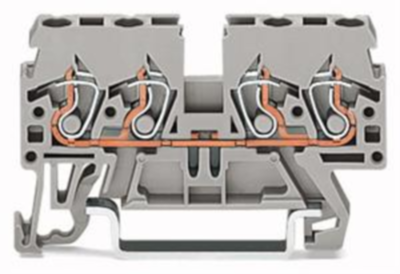

870-833 WAGO Series Terminals Image 1
870-833 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4756 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale

4-Conductor through terminal block, 870-833, Wago

4-conductor feed-through terminal block; 2.5 mm²; lateral and central labeling; for mounting rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2.50 mm²; red

Technical specifications
Ausführung 4-Leiter-Durchgangsklemme
Anzahl der Klemmstellen 4
Polzahl 1-polig
Leiterquerschnitt 0,08-2,5 mm²
AWG-Leiterquerschnitt AWG 28 bis 12
Bemessungsstoßspannung 6 kV
Nennstrom 24 A
Bemessungsspannung 500 V
Verschmutzungsgrad 3
Länge 27.5 mm
Breite 5 mm
Höhe 55 mm
Anschluss Federklemmanschluss
Farbe rot
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
