870-834 | WAGO

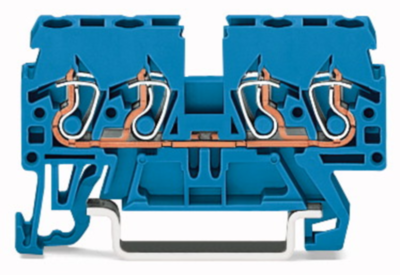

4-wire feed-through terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, blue, 870-834
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4756 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale
Through terminal block, 870-834, Wago
4-conductor through terminal suitable for Ex i applications blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | 4-wire feed-through terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | blue | |
| Height | 55 mm | |
| Length | 27.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
