870-907/999-950 | WAGO
2-wire protective earth terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, yellow/green, 870-907/999-950
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Leadtime: On Request **

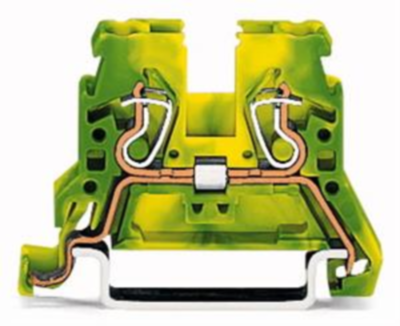

Ground terminal block, 870-907/999-950, Wago
2-wire protective earth terminal suitable for Ex e II applications Attention! Terminal not bridgeable green-yellow
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire protective earth terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | yellow/green | |
| Height | 44.5 mm | |
| Length | 27.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
