870-909 | WAGO

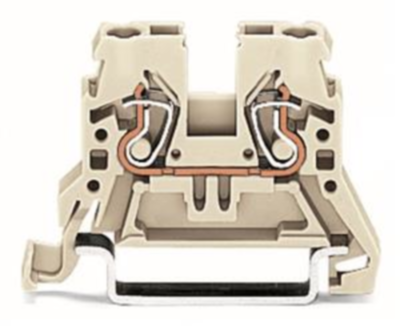

2-wire feed-through terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 22 A, light gray, 870-909
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9758 €
50 pcs.
0.8806 €
100 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Through terminal block, 870-909, Wago
2-wire through terminal block suitable for Ex e II applications light grey
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 420 V | |
| Width | 5 mm | |
| Colour | light gray | |
| Height | 44.5 mm | |
| Length | 27.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 22 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
