880-831/999-940 | WAGO
4-wire feed-through terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 20 A, 8 kV, gray, 880-831/999-940
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

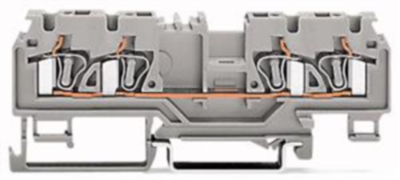

4-Conductor through terminal block, 880-831/999-940, Wago
4-conductor through terminal block without shield conductor rail with test opening for test plugs Ø 2 mm and Ø 2.3 mm for use with special cables max. insulation diameter 4.4 mm gray
Technical specifications
| Ausführung | 4-Leiter-Durchgangsklemme | |
| Anzahl der Klemmstellen | 4 | |
| Polzahl | 1-polig | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 20 A | |
| Bemessungsspannung | 800 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 29 mm | |
| Breite | 5 mm | |
| Höhe | 87 mm | |
| Anschluss | Federklemmanschluss | |
| Farbe | grau |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
