883-3504 | WAGO

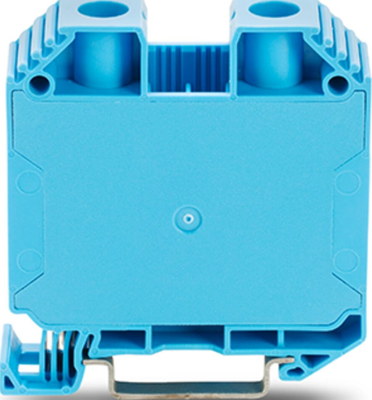

2-wire feed-through terminal, screw connection, 1.5-50 mm², 1 pole, 125 A, 8 kV, blue, 883-3504
Unit Price (€ / pc.)
6.8901 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.89 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8901 €
10 pcs.
6.4022 €
50 pcs.
5.8905 €
100 pcs.
5.3669 €
*incl. VAT plus shipping costs
**Subject to prior sale
Through terminal block, 883-3504, WAGO
Our through terminal block (item number 883-3504) ensures effortless electrical installations. Strip lengths must be 18 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with a screw connection, this product outperforms the competition. This through terminal block is suitable for conductor cross sections ranging from 1.5 mm² to 50 mm². It features one level and two clamping points that you can use to connect a single potential. The blue housing is made of polyamide (PA66) for insulation. These high-current terminal blocks are mounted using DIN-35 rails.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 16 bis 1/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 16.1 mm | |
| Farbe | blau | |
| Höhe | 59 mm | |
| Leiterquerschnitt | 1,5-50 mm² | |
| Nennstrom | 125 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
