883-7004 | WAGO
2-wire feed-through terminal, screw connection, 10-95 mm², 1 pole, 192 A, 8 kV, blue, 883-7004
Unit Price (€ / pc.)
23.8595 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
23.86 € *
Price list
Quantity
Price per unit*
1 pcs.
23.8595 €
10 pcs.
22.1816 €
25 pcs.
20.4085 €
50 pcs.
18.5759 €
*incl. VAT plus shipping costs
**Subject to prior sale

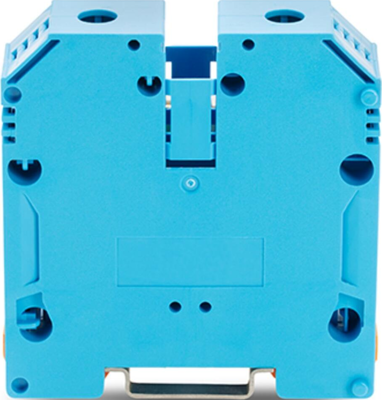

Through terminal block, 883-7004, WAGO
This through terminal block (item number 883-7004) is designed for quick and simple connections. Ensure that the strip lengths are 22 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes a screw connection. Depending on the type of conductor, this through terminal block is suitable for conductor cross sections ranging from 10 mm² to 95 mm². It features one level and two clamping points for connecting a single potential. The blue housing is made of polyamide (PA66) for insulation. These high-current terminal blocks are mounted using DIN-35 rails.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 8 bis 3/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |

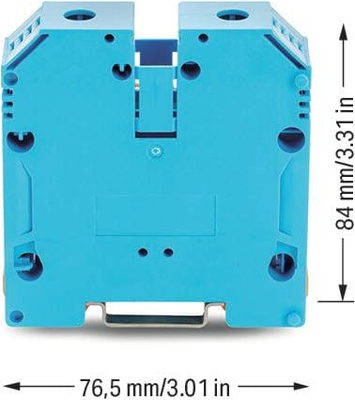

| Breite | 20.5 mm | |
| Farbe | blau | |
| Höhe | 76.5 mm | |
| Leiterquerschnitt | 10-95 mm² | |
| Nennstrom | 192 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
