Temperature transducer, 857-810

Order No.: 45P2278
EAN: 4045454470135
MPN:
857-810
Series: 857
857-810 WAGO Signal Converters and Measuring Transducers Image 1
857-810 WAGO Signal Converters and Measuring Transducers Image 2
857-810 WAGO Signal Converters and Measuring Transducers Image 3
Image may differ
Unit Price (€ / pc.)
274.6877 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
274.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
274.6877 €

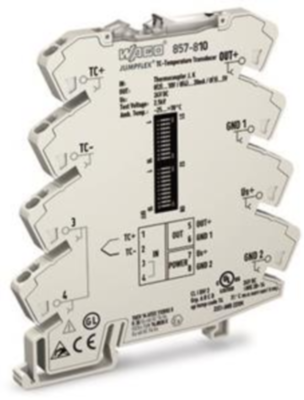

Temperature signal conditioner, 857-810, WAGO

The 857-810 is a temperature signal conditioner for thermocouples. This product records signals from thermocouples (type J, K) and converts the temperature signal into a standard analog signal at the output.

Features

  • Cold junction compensation (On/Off)
  • Calibrated measurement range switching
  • Detects a sensor wire break
  • Detects measurement range underflow/overflow
  • Clipping capability for analog signal limitation to output end values
Technical specifications
Version für Thermoelemente

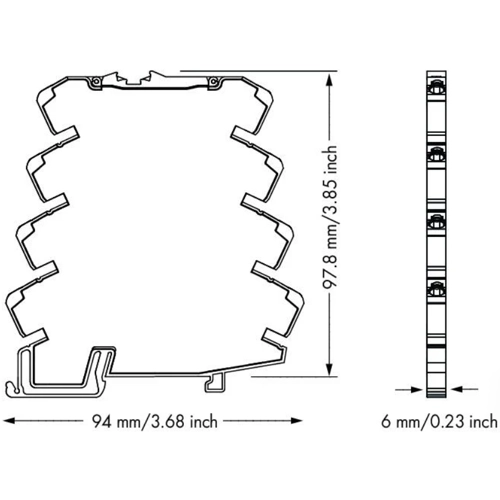

Width 6 mm
Weight 35.5 g
Height 97.8 mm
Length 94 mm
measurement range -200-1200 °C (Typ J), -200-1350 °C (Typ K)
Product type Temperaturmessumformer
Logistics
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Tetrabrombisphenol A (TBBPA), Blei
