221-412 | WAGO
Cable connector, 2 pole, 0.2-4.0 mm², clamping points: 2, orange/transparent, cage clamp, 32 A, 221-412
Unit Price (€ / pc.)
0.5831 € *
Available: 2,311 pcs.
Leadtime: 3 Weeks **
Total Price:
0.58 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5831 €
10 pcs.
0.4998 €
100 pcs.
0.4403 €
500 pcs.
0.3927 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale

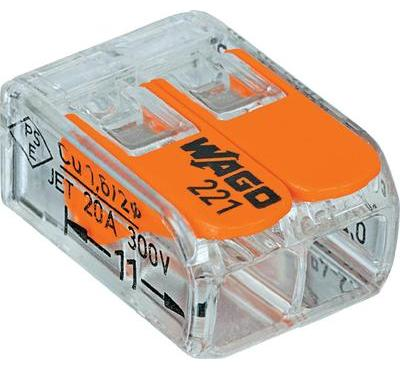

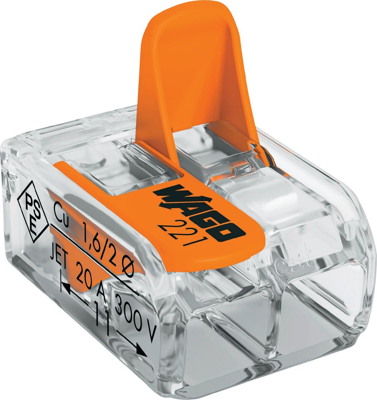

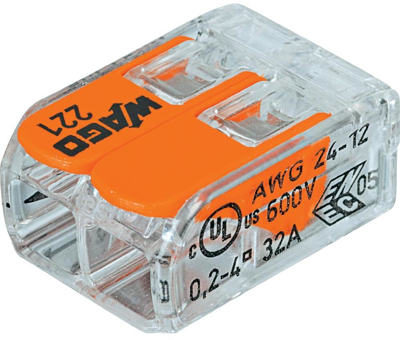

Connector, 221-412, WAGO
COMPACT splicing connector, for all conductor types, maximum 4 mm², 2-conductor, with levers, transparent housing, surrounding air temperature: maximum 85 °C (T85), 4,00 mm², transparent.
Features
- Time saving
- Easy of use
- Connect solid, stranded and fine-stranded conductors
Technical specifications
| Anschluss | Käfigklemme | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Verbindungsklemme | |
| AWG-Leiterquerschnitt | AWG 24-12 | |
| Farbe | orange/transparent | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 2-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
