221-485 | WAGO
Connection clamp, 5 pole, 0.14-4.0 mm², clamping points: 5, transparent/white, cage clamp, 32 A, 221-485
Unit Price (€ / pc.)
1.6541 € *
Available: 64 pcs.
Leadtime: 3 Weeks **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6541 €
10 pcs.
1.5232 €
50 pcs.
1.3804 €
100 pcs.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale

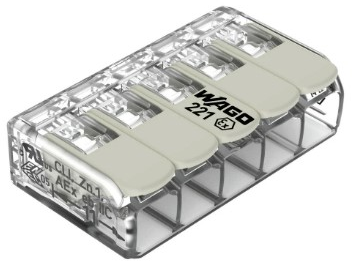

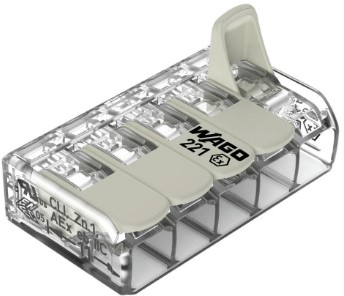

Connector, 221-485, WAGO
COMPACT splicing connector, for all conductor types, for Ex e applications, maximum 4 mm², 5-conductor, with levers, transparent housing, operating temperature (maximum): 105 °C, 4,00 mm², transparent.
Features
- Time saving
- Easy of use
- Connect solid, stranded and fine-stranded conductors
Technical specifications
| Connection | cage clamp | |
| Number of terminals | 5 | |
| Version | connection clamp | |
| AWG cross-section | AWG 24-12 | |
| Colour | transparent/white | |
| Cable cross-section | 0.14-4.0 mm² | |
| Rated current | 32 A | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
