221-685 | WAGO
Connection clamp, 5 pole, 0.5-6.0 mm², clamping points: 5, transparent/white, cage clamp, 37 A, 221-685
Unit Price (€ / pc.)
2.2848 € *
Available: 30 pcs.
Leadtime: 1 Week **
Total Price:
2.28 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2848 €
10 pcs.
2.1301 €
50 pcs.
1.9516 €
100 pcs.
1.7731 €
*incl. VAT plus shipping costs
**Subject to prior sale

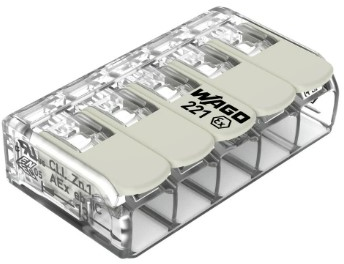

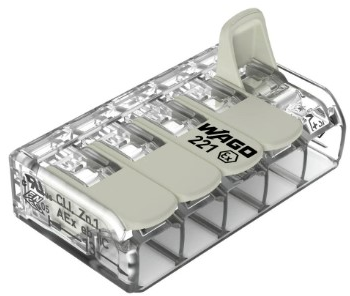

Connector, 221-685, WAGO
COMPACT splicing connector, for all conductor types, for Ex e applications, maximum 6 mm², 5-conductor, with levers, transparent housing, operating temperature (maximum): 105 °C, 6,00 mm², transparent.
Features
- Time saving
- Easy of use
- Connection of all conductor types
Technical specifications
| Connection | cage clamp | |
| Number of terminals | 5 | |
| Version | connection clamp | |
| AWG cross-section | AWG 20-10 | |
| Colour | transparent/white | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated current | 37 A | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
