222-413 | WAGO
Connection clamp, 3 pole, 0.8-2.5 mm², clamping points: 3, gray, cage clamp, 32 A, 222-413
Unit Price (€ / pc.)
0.5117 € *
Available: 307 pcs.
Leadtime: 3 Weeks **
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4522 €
50 pcs.
0.4165 €
*incl. VAT plus shipping costs
**Subject to prior sale

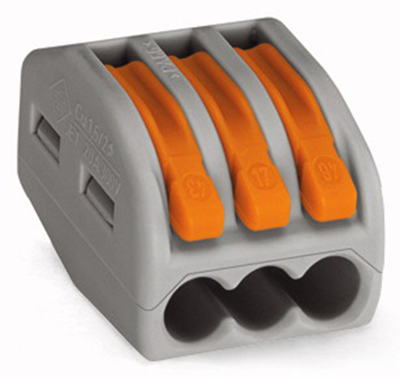

PCB terminal strip, type Wago 222-413 / 3-pole
Terminates 3 stripped fine wire conductors from 0.08 mm² to 4.0 mm² and solid or stranded wire conductors up to 2.5 mm² without tool. The clamp is opened and closed by means of lever mechanism (CAGE-CLAMP).
Rated voltage: 400 V.
Rated current: 32 A.
Operating temperatures: to + 85 °C.
Certification: ENEC, ABS, PSE

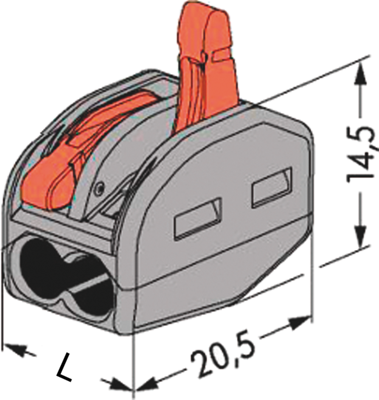

Length: 17 mm
Technical specifications
| Connection | cage clamp | |
| Number of terminals | 3 | |
| Version | connection clamp | |
| AWG cross-section | AWG 28-12 | |
| Colour | gray | |
| Cable cross-section | 0.8-2.5 mm² | |
| Rated current | 32 A | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
