243-208 | WAGO

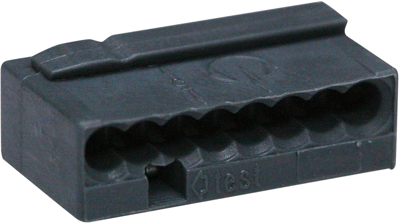

Micro junction box terminal, 8 pole, 0.6-0.8 mm², clamping points: 4, dark gray, clamp connection, 6 A, 243-208
Unit Price (€ / pc.)
0.4998 € *
Available: 4 pcs.
Leadtime: 4 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4522 €
50 pcs.
0.4165 €
100 pcs.
0.3808 €
*incl. VAT plus shipping costs
**Subject to prior sale
Micro connectors for junction boxes, type Wago 243-.
Compact design, for weak current applications. Push-wire terminals for solid conductors for use as fully insulated and touch-proof junction box terminals. With color code for circuit identification; Conductor diameter: 0.6 to 0.8 mm. Rated voltage EN: 100 V. Rated current: 6.0 A. Certifications: VDE, UL, CSA, etc.

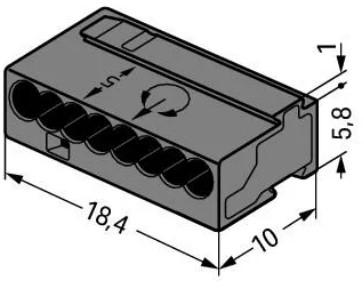

Technical attributes (type, number of poles, color): 243–208, 8–pole, dark gray
Technical specifications
| Anschluss | Klemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Micro-Verbindungsdosenklemme | |
| AWG-Leiterquerschnitt | AWG 22-20 | |
| Farbe | dunkelgrau | |
| Leiterquerschnitt | 0,6-0,8 mm² | |
| Nennstrom | 6 A | |
| Polzahl | 8-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
