243-744 | WAGO

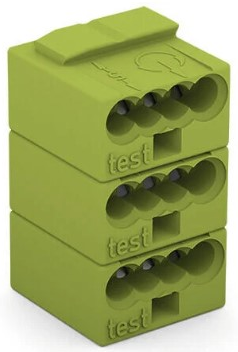

Socket terminal block, 4 pole, 0.5-1.0 mm², clamping points: 16, light green, clamp connection, 7 A, 243-744
Unit Price (€ / pc.)
1.5351 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.4161 €
50 pcs.
1.2852 €
100 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector, 243-744, WAGO

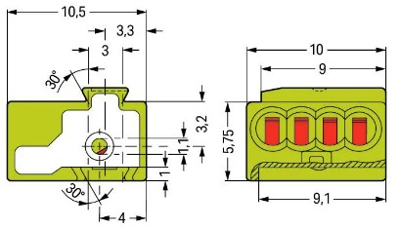

4-conductor female plug, PUSH WIRE, 0.8 mm Ø, pin spacing 5.75 mm, 4-pole, for individual solder pins, light green.
Features
- Four entries for power supply and potential distribution
- Push-in termination of solid conductors
- Quick and easy PCB replacement, without disrupting looped-through potentials
Technical specifications
| Version | Buchsenklemmenleiste | |
| Pin number | 4-polig | |
| Cable cross-section | 0,5-1,0 mm² | |
| Number of terminals | 16 | |
| Colour | hellgrün | |
| Connection | Klemmanschluss | |
| Rated current | 7 A | |
| AWG cross-section | AWG 24-18 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
