294-4003 | WAGO
Mains connection terminal, 3 pole, 0.5-2.5 mm², clamping points: 15, white, push-in wire connection, 24 A, 294-4003
Unit Price (€ / pc.)
1.1305 € *
Available: 475 pcs.
Leadtime: 4 Weeks **

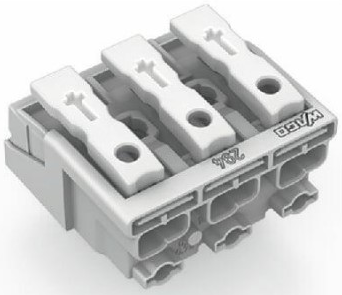

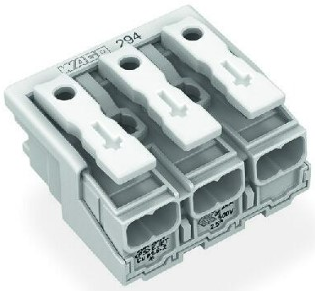

Connector, 294-4003, WAGO
Lighting connector, push-button, external, without ground contact, 3-pole, lighting side: for solid conductors, installation side: for all conductor types, maximum 2.5 mm², surrounding air temperature: maximum 85 °C (T85), 2,50 mm², white.
Features
- Universal conductor termination (AWG, metric)
- Third contact located at the bottom of internal connection end
- Strain relief plate can be retrofitted
Technical specifications
| Version | Netzanschlussklemme | |
| Pin number | 3-polig | |
| Cable cross-section | 0,5-2,5 mm² | |
| Number of terminals | 15 | |
| Colour | weiß | |
| Connection | Push-in-Drahtanschluss | |
| Rated current | 24 A | |
| AWG cross-section | AWG 18-14 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Perfluorbutansulfonsäure (PFBS) und ihre Salze |
