294-5013 | WAGO

Mains connection terminal, 3 pole, 0.5-2.5 mm², clamping points: 15, white, push-in wire connection, 24 A, 294-5013

Order No.: 09P0083
EAN: 4050821020769
MPN:
294-5013
Series: 294

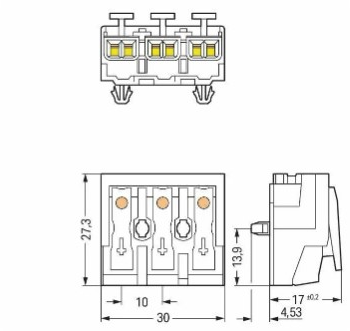

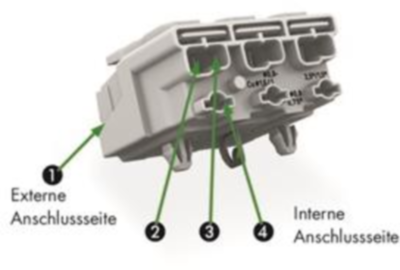

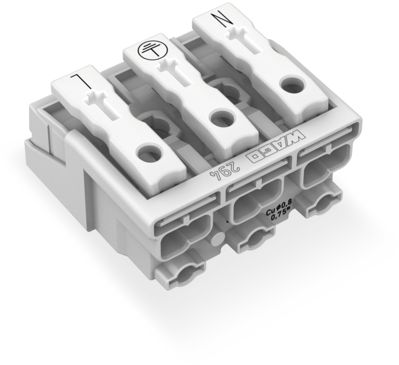

294-5013 WAGO Terminal Blocks Image 1
294-5013 WAGO Terminal Blocks Image 2
294-5013 WAGO Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 242 pcs.
Leadtime: 4 Weeks **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4875 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connector, 294-5013, WAGO

Lighting connector, push-button, external, without ground contact, N-PE-L, 3-pole, lighting side: for solid conductors, installation side: for all conductor types, maximum 2.5 mm², surrounding air temperature: maximum 85 °C (T85), 2,50 mm², white.

Features

  • Universal conductor termination (AWG, metric)
  • Third contact located at the bottom of internal connection end
  • Strain relief plate can be retrofitted
Technical specifications
Anschluss Push-in-Drahtanschluss
Anzahl der Klemmstellen 15
Ausführung Netzanschlussklemme
AWG-Leiterquerschnitt AWG 18-14
Farbe weiß
Leiterquerschnitt 0,5-2,5 mm²
Nennstrom 24 A
Polzahl 3-polig
Logistics
Ursprungsland CH
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Perfluorbutansulfonsäure (PFBS) und ihre Salze
