294-8094/4025-000 | WAGO

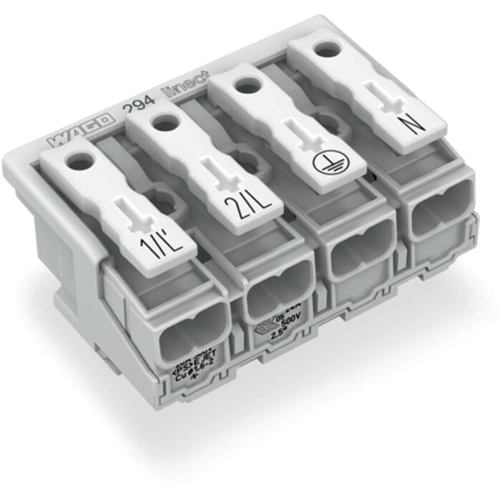

Lighting connector, 294-8094/4025-000, WAGO

The mains connection terminal with Linect has the article number 294-8094/4025-000 and offers a smooth electrical installation. A stripping length of 8 to 9 mm is required for the conductor connection with this mains connection terminal with Linect. Push-in CAGE CLAMP and PUSH WIRE technology is used for this product with its conductor connection. Push-in CAGE CLAMP is the maintenance-free universal connection for all conductor types with the additional benefit of direct plugging: Push-in. A rigid conductor and a fine-stranded conductor with ferrules can be plugged in directly without tools. Pre-treatment of the conductor, e.g. by crimping on wire end ferrules, is not necessary. Tried and tested and fast: The PUSH WIRE plug-in terminal connection is the quick and easy way to connect a kink-resistant conductor. Depending on the conductor type, the mains connection terminal with Linect is suitable for a conductor cross-section of 0.5 mm² to 2.5 mm² on one side and for a conductor cross-section of 0.5 mm² to 2.5 mm² on the other, as well as for conductor cross-sections of 0.5 mm² to 1.5 mm² and from 0.5 mm² to 0.75 mm². The contact surface is made of tin.
