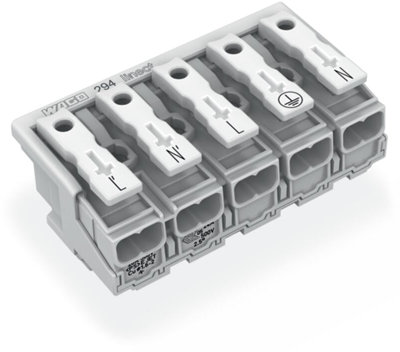

Lighting connector, 294-8095/5025-000, WAGO
Easy electrical installation is guaranteed with the field-wiring terminal block with Linect (item number 294-8095/5025-000). A conductor can only be connected to the field-wiring terminal block with Linect if its strip length is between 8 mm and 9 mm. Featuring a conductor terminal along with Push-in CAGE CLAMP and PUSH WIRE, this product outperforms the competition. The Push-in CAGE CLAMP is a universal, maintenance-free connection solution for any conductor type, featuring a winning design: It allows direct insertion of both a solid and a fine-stranded conductor with a ferrule without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. This PUSH WIRE connection is a simple and reliable method for connecting a solid conductor. The field-wiring terminal block with Linect is suitable for a conductor cross section ranging from 0.5 mm² to 2.5 mm² on one side and from 0.5 mm² to 2.5 mm² on the other side, as well as a conductor cross section from 0.5 mm² to 2.5 mm² and from 0.5 mm² to 0.75 mm², depending on the conductor type. The contact is made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the white housing is made of polycarbonate (PC) for insulation. Tin is used to coat the contact surface.
