294-8095/5027-000 | WAGO

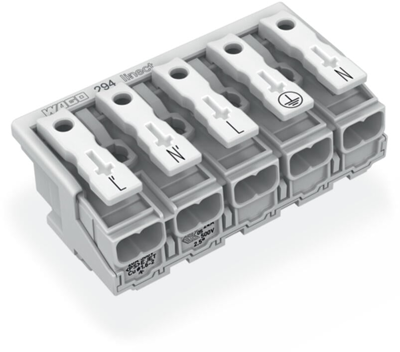

Lighting connector, 294-8095/5027-000, WAGO

This field-wiring terminal block with Linect (item number 294-8095/5027-000) ensures effortless electrical installation. A conductor can only be connected to the field-wiring terminal block with Linect if its strip length is between 8 mm and 9 mm. Featuring a conductor terminal along with Push-in CAGE CLAMP and PUSH WIRE, this connector outperforms the competition. Push-in CAGE CLAMP connection technology is ideal for connecting any conductor type. Solid and fine-stranded conductors with ferrules can be plugged in without the need for tools-all thanks to its pluggable design. This tried-and-tested PUSH WIRE connection offers the fastest method for clamping a conductor. It utilizes the conductor's stiffness to overcome the clamping spring's contact force. Depending on the conductor type, the field-wiring terminal block with Linect is ideal for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on one side and from 0.5 mm² to 2.5 mm² on the other side, as well as conductor cross sections from 0.5 mm² to 1.5 mm² and from 0.5 mm² to 0.75 mm². The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the white housing is made of polycarbonate (PC) for insulation. The contact surface is coated with tin.
