773-493 | WAGO

Cable connector, 3 pole, 2.5-6.0 mm², clamping points: 3, light gray, push-in wire connection, 42 A, 773-493

Order No.: 45P0225
EAN: 4055143287593
MPN:
773-493
Series: 773

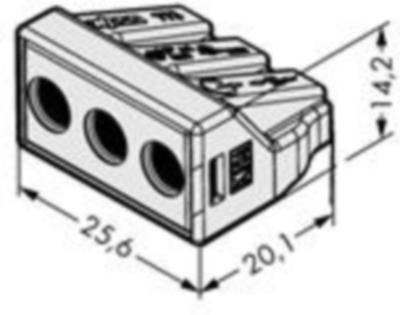

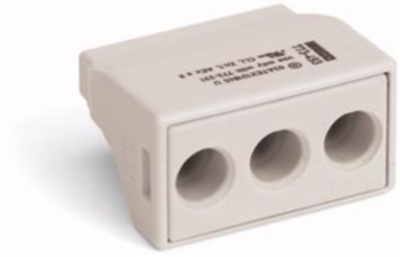

773-493 WAGO Terminal Blocks Image 1

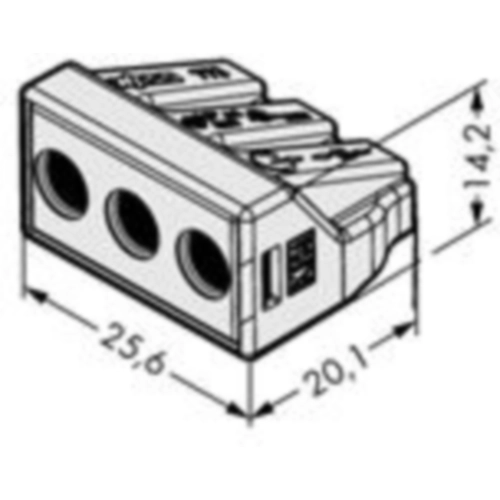

773-493 WAGO Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale

Connector, 773-493, WAGO

PUSH WIRE connector for junction boxes, for solid and stranded conductors, for Ex applications, maximum 6 mm², 3-conductor, light gray housing, light gray cover, Operating temperature (maximum): 105 °C, 6,00 mm², light gray.

Technical specifications
Anschluss Push-in-Drahtanschluss
Anzahl der Klemmstellen 3
Ausführung Verbindungsklemme
AWG-Leiterquerschnitt AWG 14-10
Farbe hellgrau
Leiterquerschnitt 2,5-6,0 mm²
Nennstrom 42 A
Polzahl 3-polig
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
