289-102 | WAGO

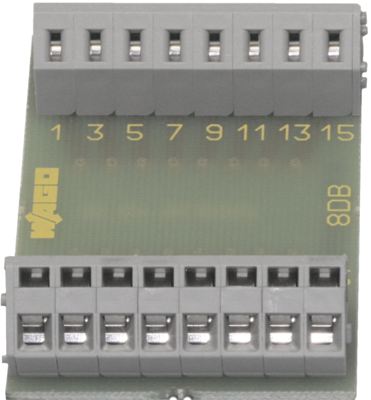

Printed circuit board with 2 x 8 holes, 3 A, 250 V, 289-102
Unit Price (€ / pc.)
23.6810 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
23.68 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6810 €
5 pcs.
21.3129 €
15 pcs.
19.1947 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rail-mountable serial modules for custom assembly, type 289-.
With wire entrance on the front and screw fastening, installation in mounting sockets, cage clamp terminals for 0.08 to 2.5 mm², Operating voltage: 250 VUC. Rated current: 3.0 A. Dimensions (LxWxH): 47.0x65.5x31.5 mm (H measured from top edge of the m
With 2 x 8 PCB holes, type 289-.
Grid: 3.83x16.0 mm, hole diameter: 1.0 mm.
Type: 289–102, module with PCB holes
Technical specifications
| Anschluss | Federklemmanschluss | |
| Ausführung | Leiterplatte mit 2x8 Bohrungen | |
| Breite | 47 mm | |
| Höhe | 31.5 mm | |
| Länge | 65.5 mm | |
| Nennspannung | 250 V | |
| Nennstrom | 3 A |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
