289-405 | WAGO

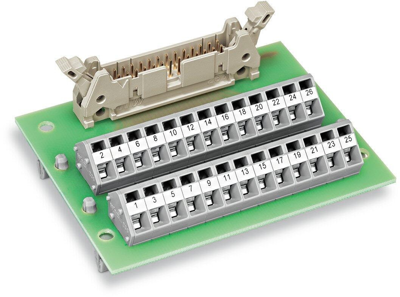

Transfer module, 26 pole, 1 A, 50 V, 289-405
Unit Price (€ / pc.)
65.6761 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Interface modules with pin header, for mounting rails TS 35 to DIN 41651, type 289-.
With mounting socket, perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 1 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 50 V/0.8 kV/2. Connector contacts: gold-plated. Performance class: 3. Dimensions including the mounting socket (WxH): 63.5x28.0 mm (H measured from top edge of the mounting rail). Terminal color: gray. Short and long ejectors are included.

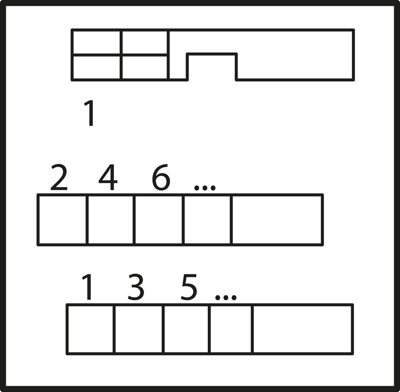

Technical attributes (type, number of poles, grid, dimension L): 289-405, 26-pole, L 81 mm
Technical specifications
| Anschluss | Federklemmanschluss | |
| Ausführung | Übergabe-Baustein | |
| Breite | 81 mm | |
| Höhe | 28 mm | |
| Länge | 63.5 mm | |
| Nennspannung | 50 V | |
| Nennstrom | 1 A | |
| Polzahl | 26-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
