289-426 | WAGO
Transfer module, 64 pole, 1 A, 50 V, 289-426
Unit Price (€ / pc.)
76.8264 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
76.83 € *
Price list
Quantity
Price per unit*
1 pcs.
76.8264 €
3 pcs.
73.4944 €
5 pcs.
70.4480 €
*incl. VAT plus shipping costs
**Subject to prior sale

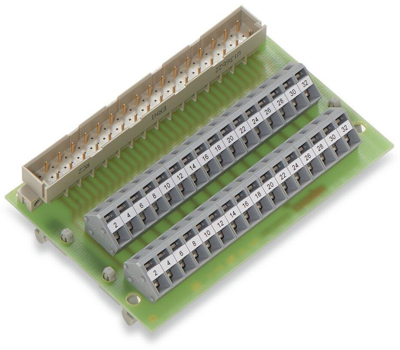

Interface module for TS 35 mounting rails with DIN 41612 design C connectors
With male connector, vertical insertion, type 289-426
With mounting sockets, cage clamp terminals and wire entrance on the front. For female connectors with solder terminals.
Terminating range: 0.08 to 2.5 mm²,
Operating voltage: 125 VUC
Rated current: 1 A. Rated voltage to VDE 0110 Part 1/4.97
IEC 60664-1: 50 V/0.8 kV/2
Connector contacts: gold-plated
Contact resistance: 20 mohm
Performance class: 2/400 insertion cycles
Dimensions including the mounting sockets (WxH): 63.5x21.0 mm (H measured from top edge of the mounting rail)
Terminal color: gray
Technical attributes (number of poles, grid, dimension L): 289 - 426, 64 -pole, Length 187 mm
Technical specifications
| Connection | Cage clamp connection/Solder conection | |
| Version | transfer module | |
| Width | 187 mm | |
| Height | 21 mm | |
| Length | 63.5 mm | |
| Rated voltage | 50 V | |
| Rated current | 1 A | |
| Pin number | 64 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
