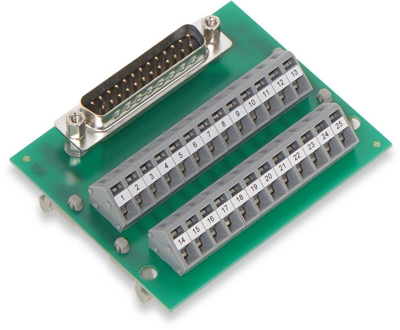

Transfer module, 25 pole, 1 A, 50 V, 289-447
Interface modules with subminiature D-male connector, for TS 35 mounting rails, type Wago 289-.
With mounting socket, perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 1 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 50 V/0.8 kV/2. Connector contacts: gold-plated. Contact resistance: 3.0 mohm. Performance class: 2/200 insertion cycles. Dimensions including the mounting sockets (WxH): 63.5x19.0 (H measured from top edge of the mounting rail). Terminal color: gray. Wire entrance: perpendicular.
With male connector for mating socket strips with solder connection, type 289-.
The terminal numbers are assigned according to the pin numbering of the subminiature-D male connector.
Technical attributes (type, number of poles, grid, dimension L): 289-447, 25-pole, L 79 mm
| Connection | Cage clamp connection/Solder conection | |
| Version | transfer module | |
| Width | 79 mm | |
| Height | 19 mm | |
| Length | 63.5 mm | |
| Rated voltage | 50 V | |
| Rated current | 1 A | |
| Pin number | 25 pole |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
