289-505 | WAGO

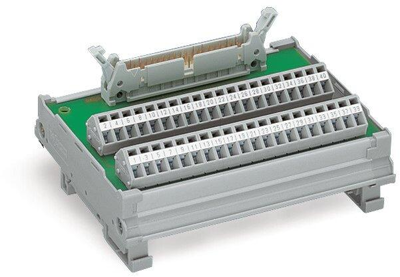

Transfer module, 26 pole, 1 A, 100 V, 289-505
Unit Price (€ / pc.)
72.4948 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
72.49 € *
Price list
Quantity
Price per unit*
1 pcs.
72.4948 €
5 pcs.
67.1874 €
15 pcs.
62.2251 €
*incl. VAT plus shipping costs
**Subject to prior sale
Interface modules for TS 35 mounting rails with pin header to DIN 41651/MiL-C-83503, type 289-.
With mounting socket, perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 1 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 50 V/0.8 kV/2. Connector contacts: gold plated. Performance class: 3. Dimensions including the mounting socket (WxH): 85x36 mm (H measured from top edge of the mounting rail). Terminal color: gray. Short and long ejectors are included.
Technical attributes (type, number of poles, grid, dimension L): 289–505, 26-pole, L 71 mm
Technical specifications
| Connection | spring-clamp connection | |
| Version | transfer module | |
| Width | 71 mm | |
| Height | 36 mm | |
| Length | 85 mm | |
| Rated voltage | 100 V | |
| Rated current | 1 A | |
| Pin number | 26 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
