289-510 | WAGO

Name: Transfer module, 64 pole, 1 A, 100 V, 289-510
Brand: WAGO
SKU: 43P1816
Price: 155.78 EUR
Availability: OutOfStock

Transfer module, 64 pole, 1 A, 100 V, 289-510

Order No.: 43P1816

EAN: 4045454475956

MPN:

289-510

Series: 289

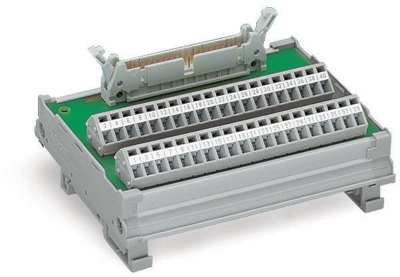

289-510 WAGO Transfer Modules for Mounting Rail Image 2

Image may differ

Key Specification:

Version transfer module

Pin number 64 pole

Rated current 1 A

Rated voltage 100 V

Length 85 mm

Show 35 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

155.7829 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

155.78 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Interface module, 289-510, WAGO

Interface module, Pluggable connector per DIN 41651, 64-pole, PCB terminal blocks, Triple-row, in mounting carrier, 2.50 mm².

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 35 variations
