Transfer module, 15 pole, 2 A, 125 V, 289-546
Unit Price (€ / pc.)
59.8094 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
59.81 € *
Price list
Quantity
Price per unit*
1 pcs.
59.8094 €
5 pcs.
53.8356 €
15 pcs.
50.0752 €
*incl. VAT plus shipping costs
**Subject to prior sale

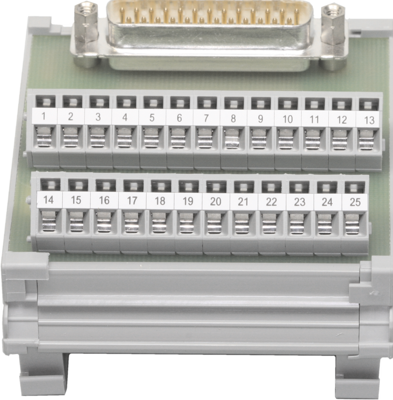

Interface modules with subminiature-D male connector, for TS 35 mounting rails, type 289-.
For mating female connectors with solder terminals, perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 2 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 125 V/0.8 kV/2. Connector contacts: gold-plated. Contact resistance: 3.0 mohm. Performance class: 2/200 insertion cycles. Dimensions including the mounting sockets: mounting socket (WxH): 85x34 mm (H measured from top edge of the mounting rail). Terminal color: gray. Wire entrance: perpendicular.
Technical attributes (type, number of poles, grid, dimension L): 289-546, 15-pole, 46 mm
Technical specifications
| Anschluss | Federklemmanschluss/Lötanschluss | |
| Ausführung | Übergabe-Baustein | |
| Breite | 46 mm | |
| Höhe | 34 mm | |
| Länge | 85 mm | |
| Nennspannung | 125 V | |
| Nennstrom | 2 A | |
| Polzahl | 15-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
