289-556 | WAGO
Transfer module, 15 pole, 2 A, 125 V, 289-556
Unit Price (€ / pc.)
63.5222 € *
Available: 1 pcs.
Leadtime: 3 Weeks **

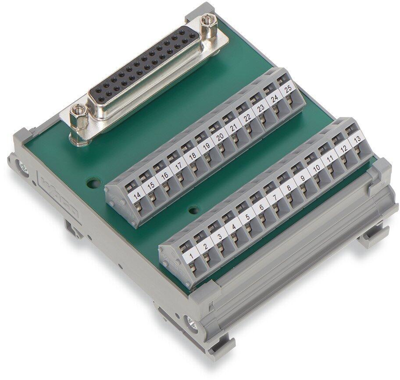

Interface modules for TS 35 mounting rails with subminiature-D female connector, type 289-.
For mating pin headers with solder terminals, with mounting socket and perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 2 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 125 V/0.8 kV/2. Connector contacts: gold-plated. Contact resistance: 10 mohm. Performance class: 2/200 insertion cycles. Dimensions including the mounting socket (WxH): 85 x34 mm (H measured from top edge of the mounting rail). Terminal color: gray.

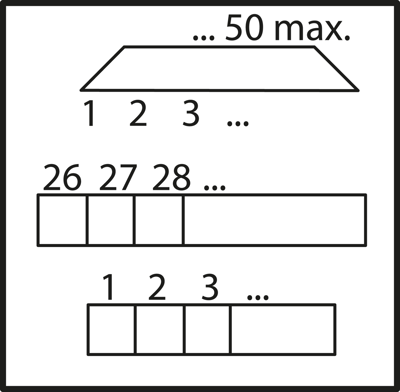

Technical attributes (type, number of poles, grid, dimension L): 289-556, 15-pole, 46 mm
Technical specifications
| Anschluss | Federklemmanschluss/Lötanschluss | |
| Ausführung | Übergabe-Baustein | |
| Breite | 46 mm | |
| Höhe | 34 mm | |
| Länge | 85 mm | |
| Nennspannung | 125 V | |
| Nennstrom | 2 A | |
| Polzahl | 15-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
