Transfer module, 37 pole, 2 A, 125 V, 289-558
Unit Price (€ / pc.)
105.2674 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
105.27 € *
Price list
Quantity
Price per unit*
1 pcs.
105.2674 €
5 pcs.
97.9013 €
15 pcs.
91.0350 €
*incl. VAT plus shipping costs
**Subject to prior sale

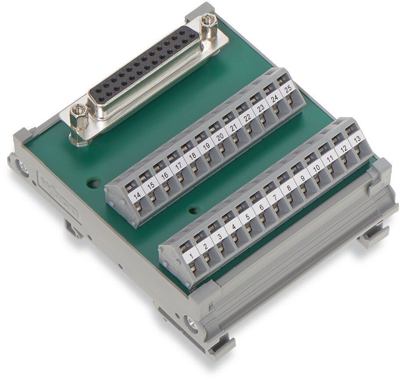

Interface modules for TS 35 mounting rails with subminiature-D female connector, type 289-.
For mating pin headers with solder terminals, with mounting socket and perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 2 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 125 V/0.8 kV/2. Connector contacts: gold-plated. Contact resistance: 10 mohm. Performance class: 2/200 insertion cycles. Dimensions including the mounting socket (WxH): 85x34 mm (H measured from top edge of the mounting rail). Terminal color: gray.
Technical attributes (type, number of poles, grid, dimension L): 289-558, 37-pole, L 102 mm
Technical specifications
| Connection | Cage clamp connection/Solder conection | |
| Version | transfer module | |
| Width | 102 mm | |
| Height | 34 mm | |
| Length | 85 mm | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Pin number | 37 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
