289-617 | WAGO

Name: Transfer module, 40 pole, 1 A, 100 V, 289-617
Brand: WAGO
SKU: 43P1858
Price: 107.79 EUR
Availability: OutOfStock

Transfer module, 40 pole, 1 A, 100 V, 289-617

Order No.: 43P1858

EAN: 4045454353612

MPN:

289-617

Series: 289

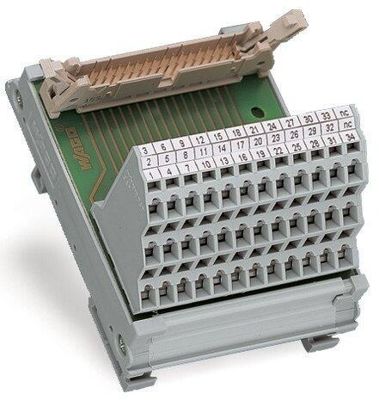

289-617 WAGO Transfer Modules for Mounting Rail Image 2

Image may differ

Key Specification:

Version transfer module

Pin number 40 pole

Rated current 1 A

Rated voltage 100 V

Length 85 mm

Show 35 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

107.7902 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

107.79 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Interface module, 289-617, WAGO

Interface module, Pluggable connector per DIN 41651, 40-pole, PCB terminal blocks, Triple-row, in mounting carrier, 2.50 mm².

Technical specifications

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85369010

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

1 item in 35 variations
